化学强化保护玻璃(Chemical Strengthening Cover Glass)
材质(material)：D263T，B270，BK7，Float glass，PC，PMMA,康宁2320，龙尾玻璃，石英，蓝宝石等
用途:各种光学系统的前置保护及光学芯片的前置保护
领域:数码相机，手机摄像头，工控面板等
Material: D263T, B270, BK7, Float glass, PC, PMMA, Corning 2320, Dragon tail glass, quartz, sapphire, etc
Purpose: Pre protection for various optical systems and optical chips
Fields: Digital cameras, mobile phone cameras, industrial control panels, etc
规格:根据客户要求订制
Specification: Customized according to customer requirements
产品说明：在光学玻璃及其他基材上镀上AR膜或不镀膜加上丝网印刷等，对镜头等感光原件进行前置保护。
Product Description: Coating AR film or non coating with screen printing on optical glass and other substrates to provide pre protection for photosensitive components such as lenses
尺寸公差（dimensional tolerance）：
外形（appearance）：±0.03（可根据客户要求定制，Customized according to customer requirements）
厚度（Thickness）：±0.03（可根据客户要求定制，Customized according to customer requirements）
外观(surface quality)：
美军标MIL-STD(80/50,60/40,40/20,20/10,0/4)（也可根据客户标准检查，Can also be checked according to customer standards）
化学强化(chemical strengthening)：
康宁(Corning)：CS:≥700Mpa
DOL:≥35um
CT：≤106Mpa
钠钙玻璃（soda-lime glass）：CS:≥450Mpa,DOL:≥10um
（可根据客户要求定制，Customized according to customer requirements）
镀膜种类(双面AR&单面AR&AR+AF疏水膜等)：
Coating types (double-sided AR&single-sided AR&AR+AF hydrophobic film, etc.)：
双面AR(Double-Sided AR)：400-700nm Tave>98%（可根据客户要求定制，Customized according to customer requirements）
单面AR(Single-Sided AR)：700-700nm Tave>94.5%（可根据客户要求定制，Customized according to customer requirements）
双面AR+AF(Double sided AR+AF)（可根据客户要求定制，Customized according to customer requirements）
单面AR+AF（Single sided AR+AF）（可根据客户要求定制，Customized according to customer requirements）
背胶&撕手保护膜：根据客户图纸要求贴附相应的背胶
Adhesive&Tear off Hand Protective Film: Attach the corresponding adhesive according to the customer's drawing requirements

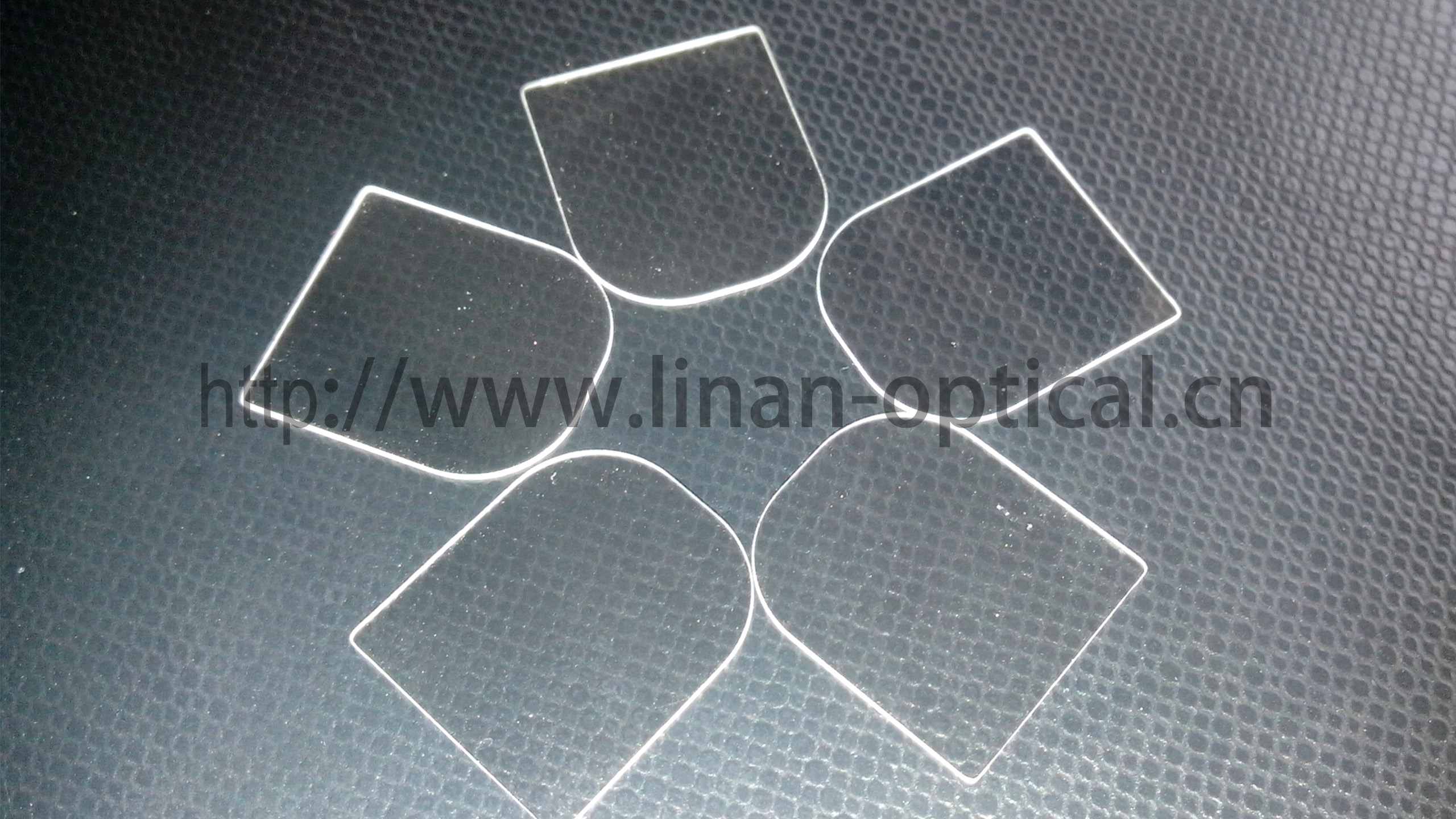

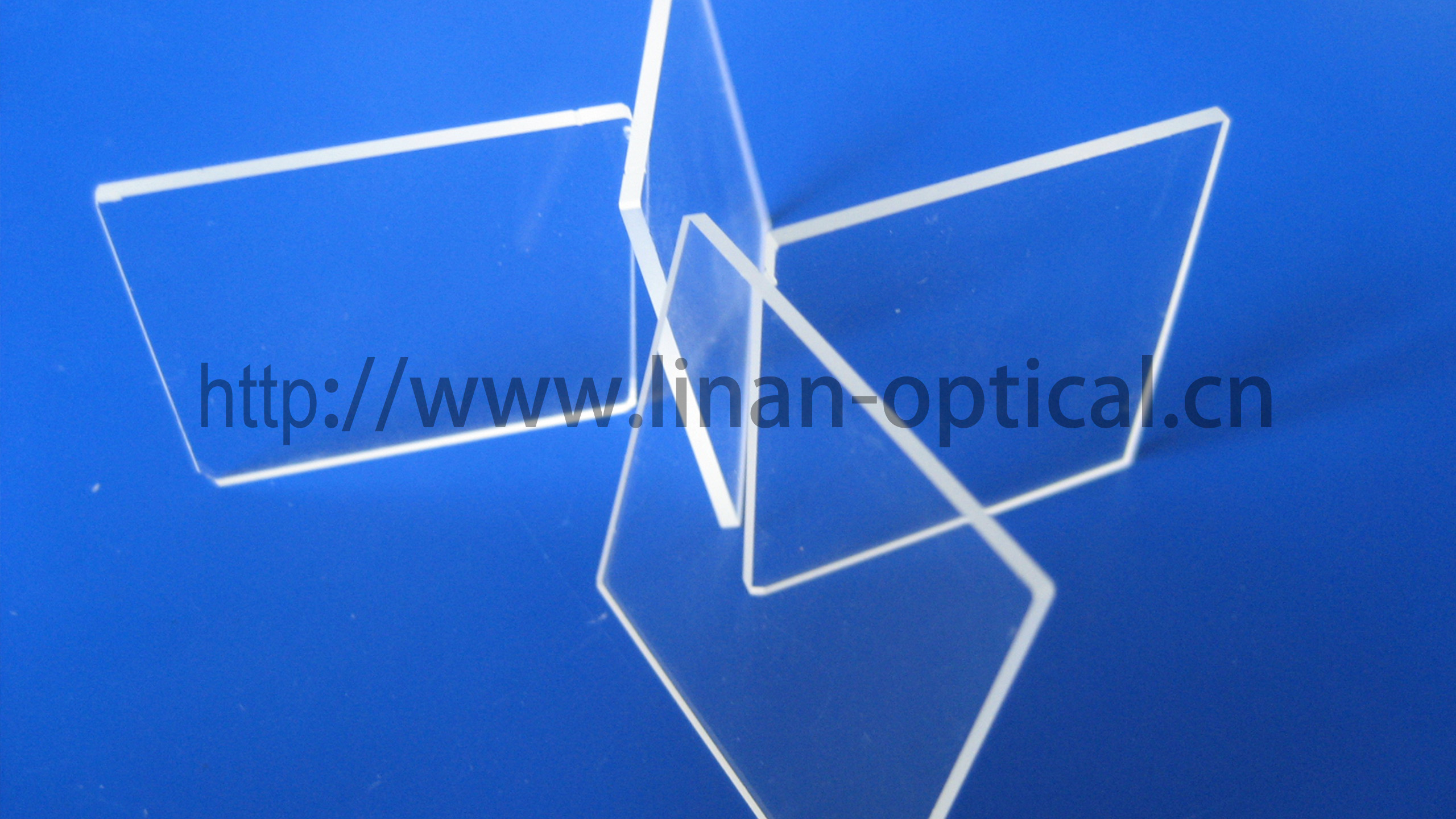

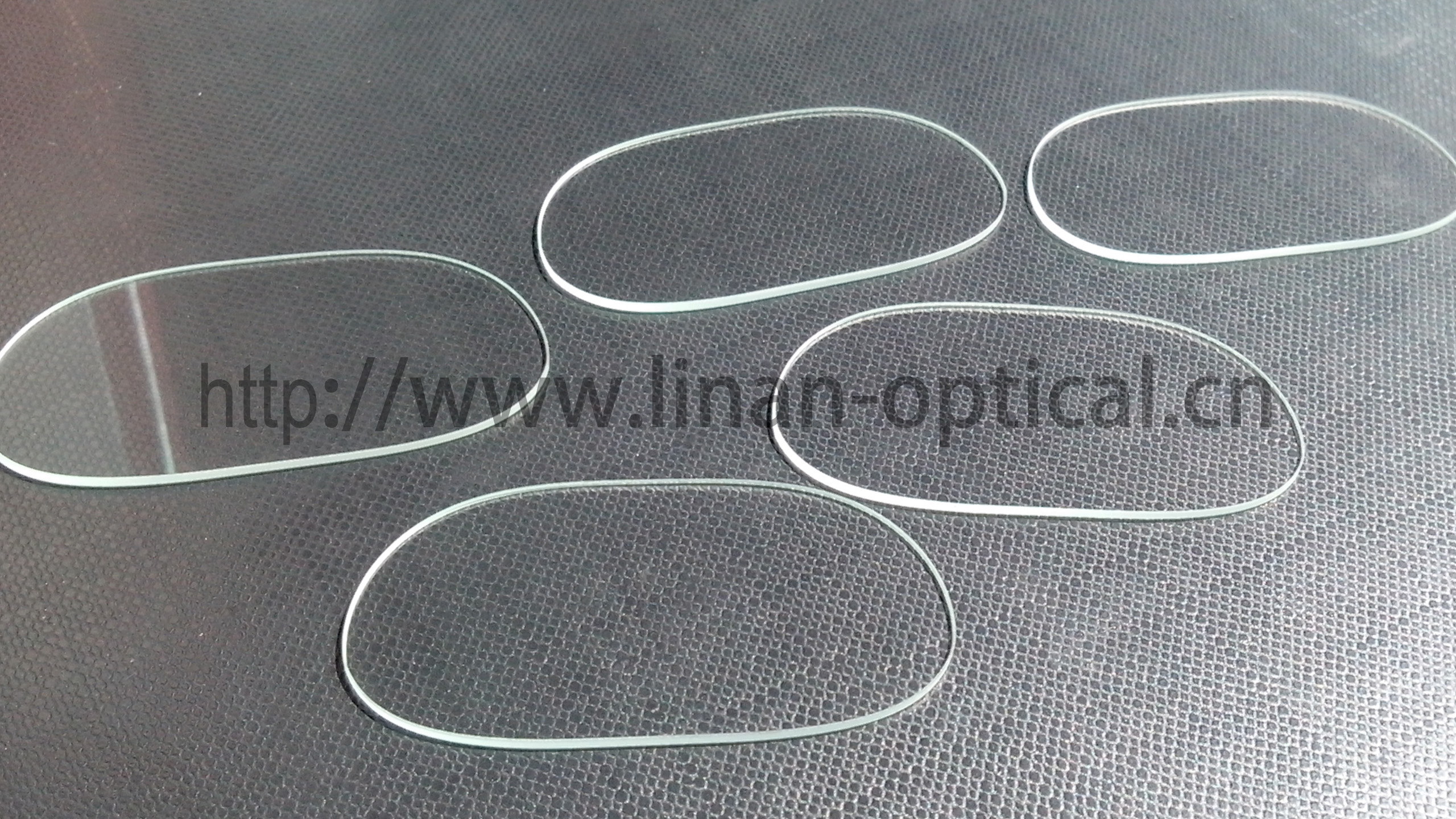

常规产品示例（Example of Conventional Products）：
|
|
|
 |
常规光谱曲线示例(Example of Conventional Spectral Curve)：
 |
 |
常规AF水滴角示例(Example of conventional AF droplet angle)：
 |
