高硼硅玻璃抛光片(High Boron-Silica Glass product)
高硼硅玻璃是一种低膨胀率(这将减少因温度梯度应力造成的影响，从而具有更强的抗断裂性能)、耐高温、高强度、高硬度、高透光率和高化学稳定性的特殊玻璃材料,因其优异的性能，被广泛应用于太阳能、化工、医药包装、电光源、工艺饰品等行业
High borosilicate glass is a special glass material with low expansion rate (which reduces the influence of temperature gradient stress and thus has stronger fracture resistance), high temperature resistance, high strength, high hardness, high transmittance, and high chemical stability. Due to its excellent properties, it is widely used in industries such as solar energy, chemical industry, pharmaceutical packaging, electric light sources, and craft jewelry
|
材料(Material) |
高硼硅玻璃(High borosilicate glass) |
|
规格尺寸(Specifications) |
Dia5.0~Dia300 5*5~200*200 |
|
面形精度(Surface accuracy) |
根据客户要求制作(Customized according to customer requirements) |
|
公差(Tolerance) |
外形(shape):±0.05mm&+0/-0.10mm或其它(or other) 厚度(Thickness):±0.01mm或根据客户要求(or other) |
|
平行度(Parallelism) |
根据客户要求制作(Customized according to customer requirements) |
|
表面光洁度(Scratch Dig) |
60/40，40/20，20/10，0/4 可根据客户要求制作(Customized according to customer requirements)。 |

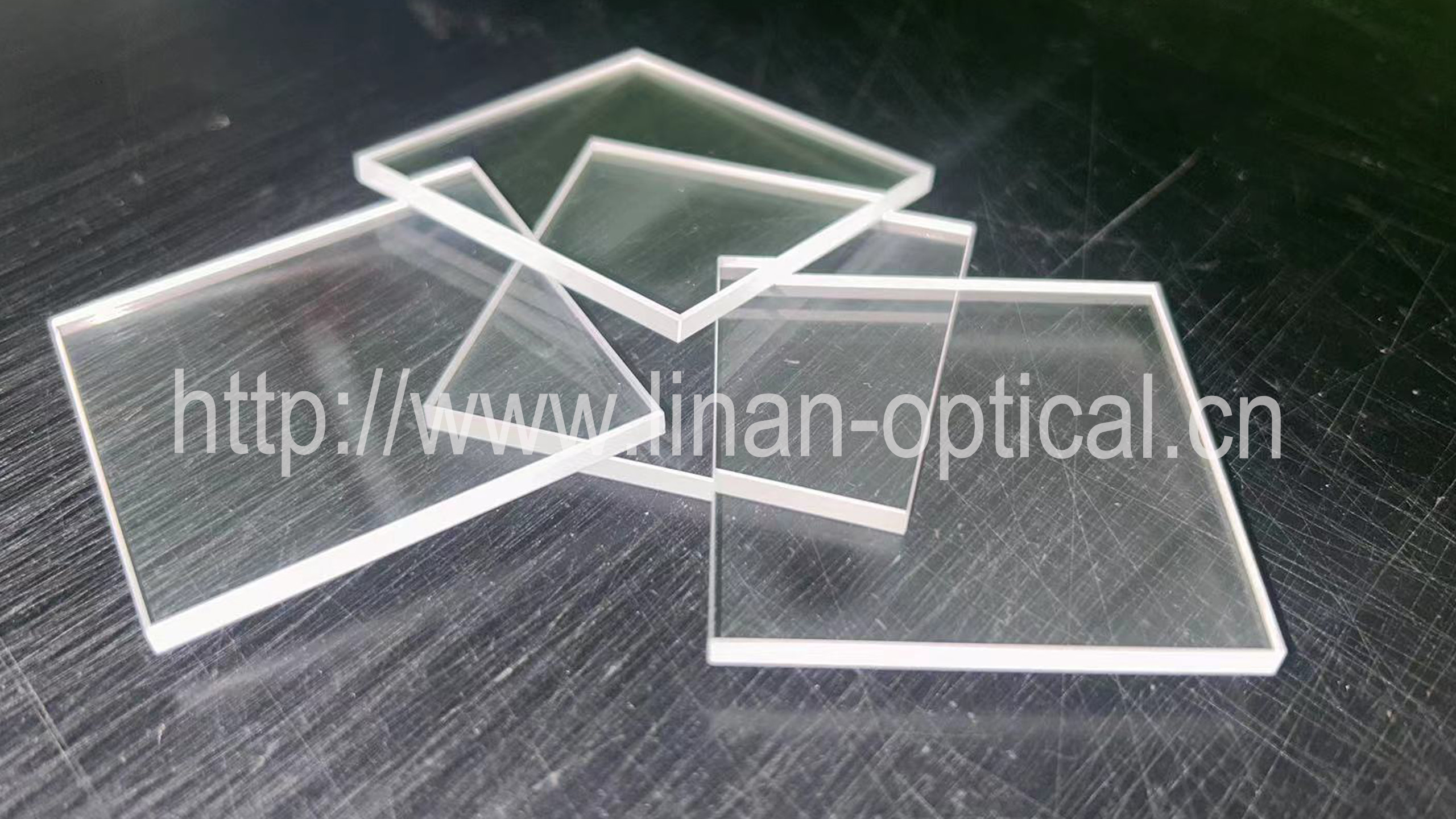

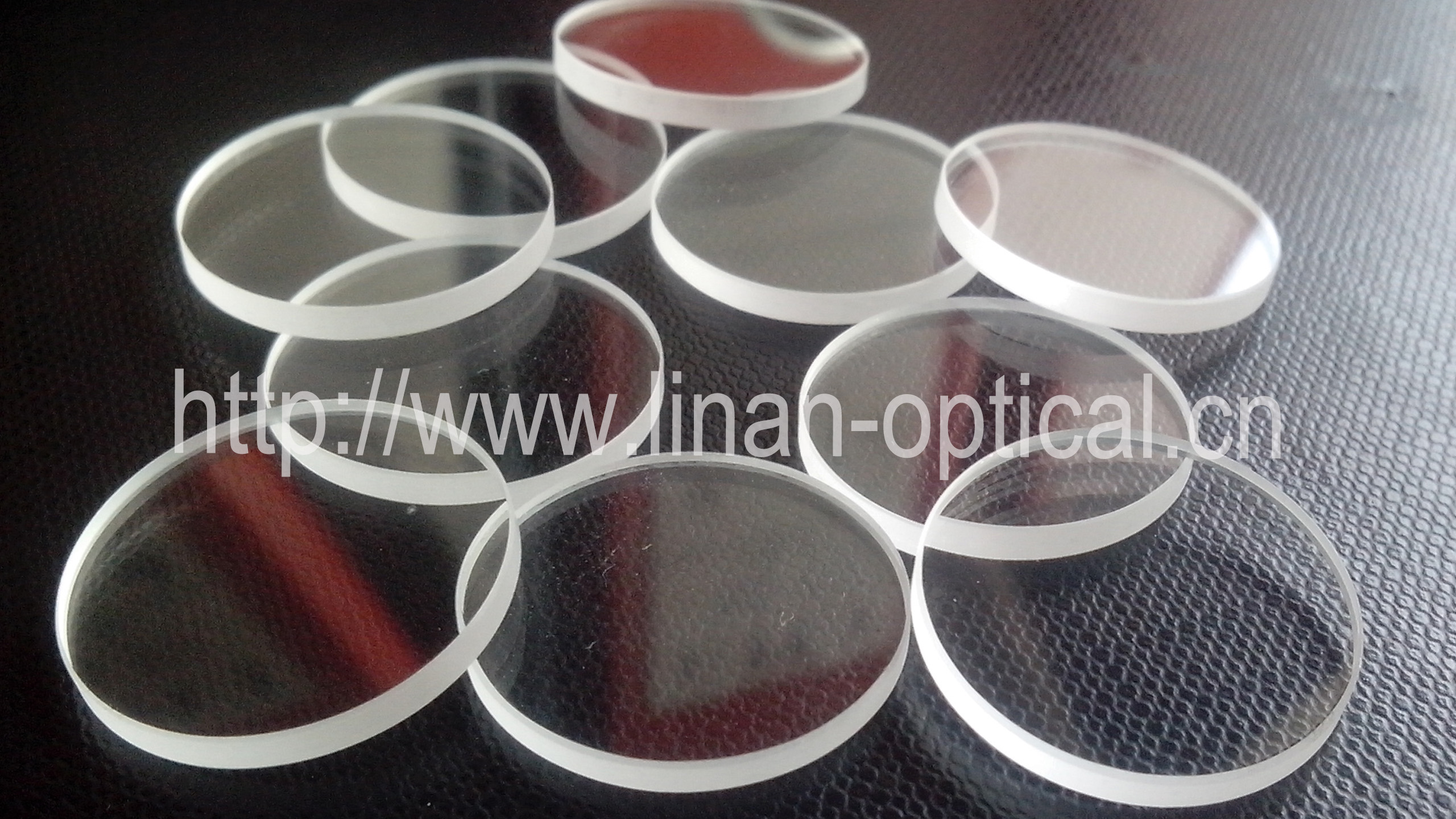

常规产品示例（Example of Conventional Products）：
|
|
|
 |
高硼硅玻璃（Borofloat33）热学性能：
